American Pneumatic Tools, Inc. APT 110 KD T4F

Double tap to zoom

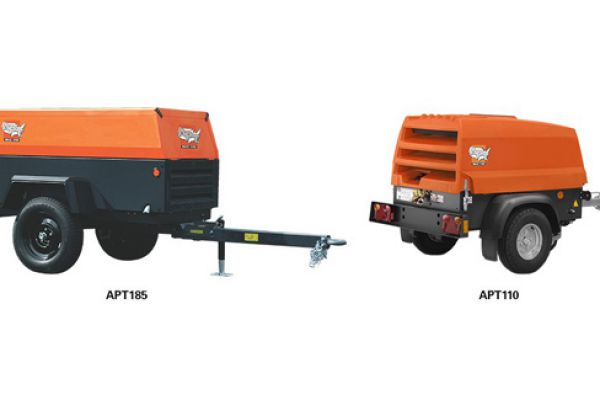

APT Portable Compressors APT 110 KD T4F

With strong undercarriages and heavy-gauge bodies, APT portable compressors
are robust and durable. Just pull one to the worksite and get busy.

Extremely reliable Kubota diesel engines
Ultra-efficient oil-injected air end
All air outlets at the rear of the machine for ease of use
Easy to service with great access to filters, engine and air receivers
Trailer-mounted with road lights as standard
Options include cold weather kits, aftercoolers, fine air filters, and more on select models

Model	APT 110 KD T4F
Free Air Delivery - CFM	88
Working Pressure - psi (Bar	100 (7)
Pressure Range - psi (Bar)	58-125 (4-8.6)
Discharge Outlets	2 @ 3/4"
Oil Capacity - gal. (L)	1.45 (5.5)
Engine Make	Kubota
Model	D 902 T4F
Displacement - L	1.123
Cylinders	3
EPA Tier	Tier 4 Final
HP	24.8
Rated Speed (High) - rpm	3,000
Rated Speed (Low) - rpm	1,800
Fuel Tank Capacity - gal. (L)	8.5 (32)
Fuel Consumption @ 100% Load - gal./hr (L/hr)	1.11 (4.2)
Fuel Autonomy @ 100% Load - Hours	8
Sound Pressure Level @ 23' (7m) @ 75% Load - dB(A)	90
Trailer Dimensions (L x W x H) - in.	61 x 42 x 34
Weight (Wet) - lbs. (kg)	970 (440)
Support Mounted (L x W x H) - in	61 x 42 x 34
Weight (Wet) - lbs. (kg)	1,100 (499)
